Still Running a Legacy greenBOX? Here’s Your Upgrade Path
- 5 hours ago
- 10 min read
Many Ecogate greenBOX control systems have been operating for years, and in some cases, decades. That longevity says a lot about the original engineering behind Ecogate’s technology for demand-based dust collection.
But even durable industrial control systems eventually face a new reality. Components reach end-of-life. Operating systems age out. IT security expectations change. Replacement parts become harder to source. And a control platform that once represented the state of the art may no longer be the best long-term fit for a modern facility.
That is where Ecogate’s upgrade path comes in.
If your facility is still running a legacy greenBOX system, Ecogate can help identify what you have, determine what can still be reused, and recommend the most practical path to the current greenBOX platform. In many cases, customers can preserve useful parts of the existing system while bringing the control platform forward.
Ecogate’s current greenBOX control system lineup includes the actively sold greenBOX 12 and the Adelie generation of Smart System controllers.
I. Legacy Systems Are Part of Ecogate’s Product History
Ecogate has been developing on-demand control systems for industrial dust collection since the late 1990s. Over time, the company introduced multiple generations of greenBOX controllers to support everything from small shops to full-size industrial facilities.
The original greenBOX helped automate small dust collectors. The PLC-based greenBOX MASTER scaled that idea for larger factory systems. The Windows-based greenBOX MASTER introduced Smart actuator communication over Modbus RTU and dramatically simplified wiring. The 2016 greenBOX NXT introduced an integrated web server and over-the-air software updates.
Each generation reflected the control technology available at the time.
Today, many of those older platforms are considered legacy systems. That does not mean they were poorly designed. It means the industrial technology around them has moved forward, and Ecogate’s current platform now offers a stronger path for long-term support, security, scalability, and remote access.
II. What Counts as a Legacy greenBOX?
In practical terms, legacy greenBOX systems are older control units that predate Ecogate’s current Adelie generation of controllers. The key exception is the greenBOX 12, which remains an active and supported Ecogate product for smaller systems.
The main legacy systems covered by Ecogate's legacy guide include:
Legacy System | Introduced | Key Identification Notes | Typical Upgrade Direction |
greenBOX 8 | 1998 | Original small-shop greenBOX, no serial number | |
PLC greenBOX MASTER | 2000 | Omron CJ1 PLC architecture, 44-gate or 88-gate versions | greenBOX 12 or Adelie, depending on gate count |
greenBOX PRO | 2006 | Compact Omron PLC, no built-in screen, configured through Windows PC software | greenBOX 12, or two linked greenBOX 12 units in some cases |
Windows-based greenBOX MASTER | 2007 | Industrial Windows PC platform, Smart actuators, Modbus daisy-chain wiring | Adelie family |
greenBOX NXT | 2016 | ARM-based controller, built-in web server, OTA updates, Wi-Fi only |
A simple way to distinguish older units from current models is the naming style:
ALL CAPS = Legacy (End-of-Life) | Initial Cap = Current (Active) |
greenBOX PRO | |
greenBOX NXT | |
greenBOX MASTER |
That distinction matters because similar names may refer to different generations. For example, greenBOX NXT and greenBOX Nxt are different products.
III. Why Most Legacy Systems Are No Longer Supported
Ecogate continues to make available many technical resources for legacy systems, including user guides, installation guides, schematics, and related documentation. Official service, repair, and software support are no longer available for most legacy control units.
Practical Reason: Many of the underlying components are now end-of-life.
Depending on the system, legacy units may rely on obsolete PLC hardware, older industrial computers, unsupported Windows operating systems, aging batteries or BIOS components, serial communication infrastructure, and network approaches that no longer align with current industrial IT practices.
These are normal lifecycle issues for long-running industrial controls. They do not mean the original systems failed. They mean the platform has reached the point where modernization becomes the better long-term path.
The greenBOX PRO, introduced in 2006, was based on compact Omron PLC architecture and configured through Windows PC software.
IV. From Point-to-Point Wiring to Smart Modbus Architecture
One of the most important transitions in Ecogate's control-system history was the move from point-to-point wiring to daisy-chained Modbus communication.
Earlier PLC-based systems used Standard Actuators and required individual wiring to each gate and sensor. In a large system, the wiring burden became significant. A PLC greenBOX MASTER system with 88 gates could require five individual wires for every gate and sensor, creating as many as 440 connections. That amount of wiring made installation slower, more labor-intensive, and more vulnerable to field wiring errors.
The Windows-based greenBOX MASTER changed that architecture. Introduced in 2007, it worked with Smart Actuators and used Ecogate Master cable to carry 24V DC power and Modbus RTU communication in one daisy-chain path. That shift simplified installation, reduced wiring complexity, and made gate-level airflow data possible.
Smart Gate Actuator | Standard Gate Actuator
This history matters because it affects the upgrade path. Older PLC-based systems often require more hardware replacement when moving to a current Smart System. Later Windows-based greenBOX MASTER systems and legacy greenBOX NXT systems may allow far more reuse because they already use Smart Actuators, Modbus communication, and compatible wiring infrastructure.
The Windows-based greenBOX MASTER also became a major step forward in system capability. Early versions supported up to 120 gates, and later software expanded that capacity to 180 gates. Over its service life, the platform supported real-time air velocity, air volume, and pressure data at the gate level, minimum transport velocity control across multiple duct zones, and advanced fan configurations using cascading, parallel, or series fan control.
For many customers, this makes the Windows-based greenBOX MASTER one of the most cost-effective legacy systems to modernize. Existing Smart Gates, sensors, VFDs, and system wiring may often be reused when upgrading to the Adelie family.
V. The Main Upgrade Paths
The right upgrade path depends on the type of legacy system, the number of gates, the wiring architecture, and the type of actuators installed.
Smaller Systems: greenBOX 12
For many systems with 12 gates or fewer, the greenBOX 12 remains the most cost-effective path. It is still actively sold and supported, works with Standard Gate Actuators, and is designed for smaller systems that need reliable automatic gate control without the full feature set of an Ecogate Smart System.
Depending on the legacy system, existing functional Standard Gates may be reusable. Certain sensors may also be reusable if they are compatible and in good condition. VFD compatibility should be reviewed case by case.
greenBOX PRO systems
For systems with fewer than 12 gates, greenBOX 12 is often the practical replacement. For greenBOX PRO systems with more than 12 gates, two greenBOX 12 units can be linked together through Modbus — this setup should be configured by an Ecogate technician. Some greenBOX PRO systems were sold as PRO+ models with a 4-20mA analog output module for VFD speed control, which affects how the existing VFD is handled during upgrade planning.
Legacy Omron GD5 VFD compatibility
Some PLC greenBOX MASTER systems used Omron GD5 VFDs manufactured by Yaskawa. These legacy VFDs cannot communicate with the greenBOX 12 through modern Modbus communication. However, in some cases, a qualified technician can reconfigure the Omron GD5 VFD to operate through the greenBOX 12's 4-20mA analog output. This should be reviewed case by case before assuming an older VFD can remain in service.
Larger systems: current greenBOX Pro, Nxt, Max, or Master
For larger systems, the recommended path is the current generation of Ecogate Smart System controllers: greenBOX Pro, greenBOX Nxt, greenBOX Max, or greenBOX Master. Older PLC-based systems may require a more substantial hardware transition. Later systems — especially Windows-based greenBOX MASTER and legacy greenBOX NXT — often offer a more efficient upgrade path because they already used Smart Actuators and Modbus-based communication.

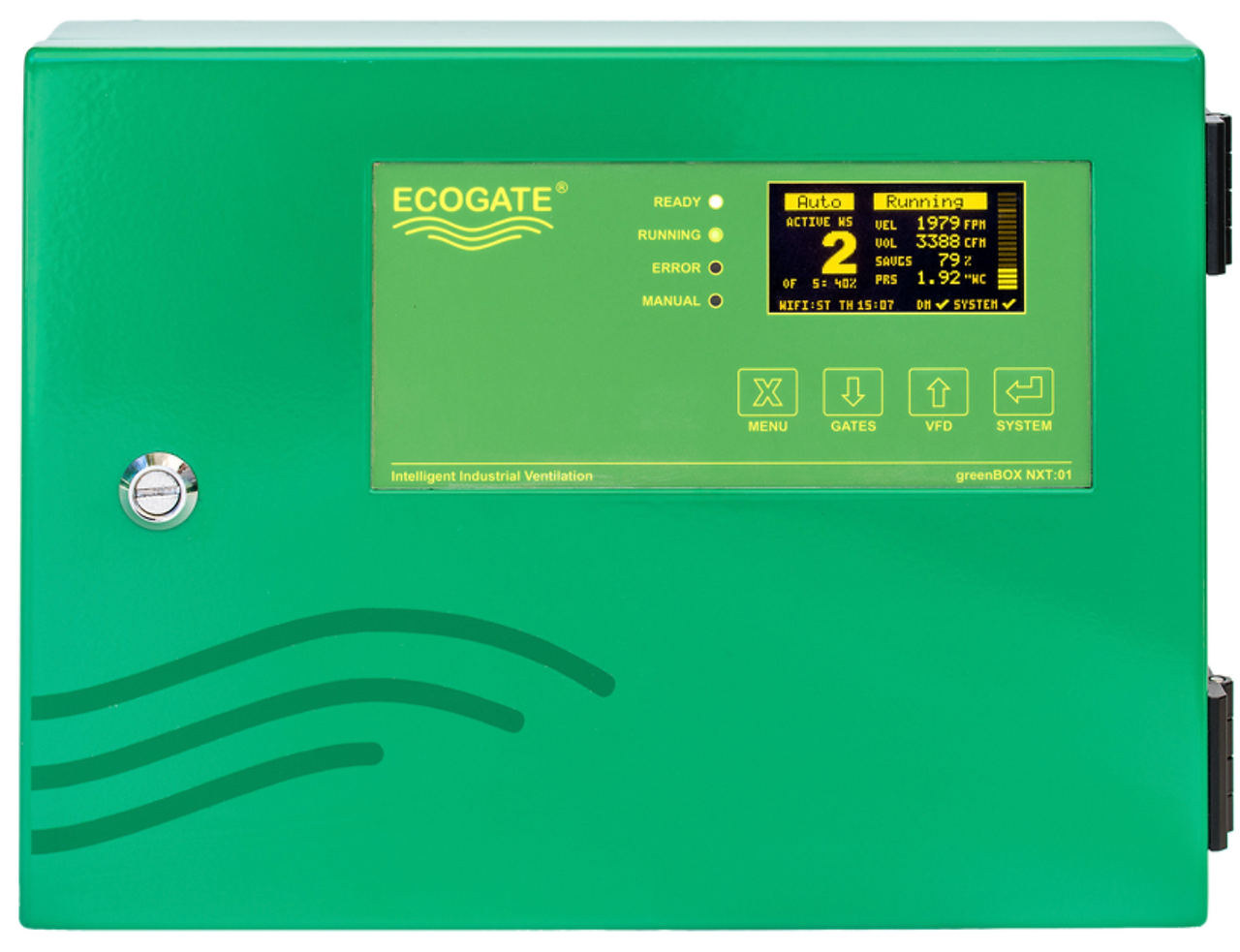

VI. The greenBOX NXT to greenBOX Nxt Upgrade Path
The 2016 greenBOX NXT deserves special attention because it was an important bridge between earlier control platforms and the current generation. It was Ecogate's first ARM-processor control unit, the first with a built-in web server, and the first to offer over-the-air software updates. It also used Smart Actuators, Modbus daisy-chain wiring, and Power Master VFD communication.
Its main limitation today is connectivity. The legacy greenBOX NXT relied on Wi-Fi and did not include a physical Ethernet port — less practical in modern industrial environments where IT departments prefer wired Ethernet and may rotate Wi-Fi credentials frequently.
The legacy greenBOX NXT also has two common aging issues: if the internal battery backup fails and power is interrupted, the ARM processor can lose date and time settings required for internet communication; and the integrated OLED display may degrade over time and become difficult or impossible to read.
These issues make the current greenBOX Nxt the natural replacement. In many cases, the existing Power Master VFD, Smart Gates, sensors, and wiring can remain in place. The main infrastructure addition is typically an Ethernet CAT5 or CAT6 cable. The capacity increase is also significant — the legacy greenBOX NXT supported up to 32 gates, while the current greenBOX Nxt supports up to 75.
VII. Important Note for greenBOX 12 Customers Upgrading to Adelie
The greenBOX 12 remains an active, cost-effective Ecogate product for smaller systems. However, customers who later upgrade from greenBOX 12 to an Adelie controller should understand one important difference.
The greenBOX 12 uses Standard Gate Actuators with individual star wiring. Adelie systems use Smart Actuators with daisy-chained Modbus communication. Because of that architecture change, the existing gate bodies may remain compatible, but the Standard Actuators must be replaced with Smart Actuators when upgrading to an Adelie system. The benefit is a cleaner and more scalable wiring architecture — Smart Actuators connect gate-to-gate rather than running individual cables back to the controller.
VIII. You May Not Need to Replace Everything
This is one of the most important messages for existing Ecogate customers.
An upgrade does not automatically mean a full rip-and-replace project. Depending on the legacy system, Ecogate may be able to preserve useful infrastructure already in place.
Legacy System | Gates | Sensors | VFDs | Wiring |
greenBOX 8 | Standard Gates, if functional | Replace vibration sensors | — | Replace |
PLC greenBOX MASTER | Standard Gates | ECOde sensors, if working | Reconfigure GD5 for 4-20mA | Replace |
greenBOX PRO | Standard Gates | VOLT / current sensors | 4-20mA preserved | Replace |
Windows-based greenBOX MASTER | All Smart Gates | All sensors | All VFDs (Yaskawa P7, A1000) | All wiring |
greenBOX NXT | All Smart Gates | All sensors | Power MASTER VFDs | All wiring |
This is especially relevant for Windows-based greenBOX MASTER and legacy greenBOX NXT systems, which were already built around Smart Actuator technology and Modbus communication. Older PLC-based systems usually require more replacement because the architecture differs more significantly from Ecogate's current Smart System approach.
The only reliable way to know what can stay and what should be replaced is to identify the actual system and review the installed components.
IX. What Customers Gain by Upgrading
Moving to the current greenBOX platform is more than a hardware change. It brings the system onto a modern control environment designed for today's industrial facilities — with web-based access from networked devices, Linux-based control architecture, Ethernet connectivity, over-the-air updates, improved remote support capability, better scalability, compatibility with Ecogate Analytics, and better alignment with modern IT expectations.
The current platform also continues the core Ecogate mission: demand-based control of industrial ventilation. Workstation activity drives gate operation. Only active drops receive airflow. The greenBOX calculates demand in real time. The VFD adjusts fan speed accordingly. And the system continuously works to maintain minimum transport velocities across the duct network.
That is the same fundamental value Ecogate has been delivering for decades, now on a more modern and serviceable platform.
IX. How to Identify Your Legacy greenBOX
If you are unsure which system you have, start with a few simple checks.
1. Check the model name
Look at the model label on the control unit. Names in all caps often indicate a legacy model, while initial-cap names often indicate a current-generation controller.
2. Look for the serial number label
Open the control unit and look for the silver serial label. Most Ecogate control units have one inside the enclosure. The original greenBOX 8 is the exception and does not have a serial number.
3. Take identification photos
Before contacting Ecogate, take clear photos of:
the outside of the controller
the inside of the enclosure
the serial label
the VFD
representative gates
any sensors connected to the system
These images help Ecogate identify the system faster and determine which components may be reusable.
X. A Practical Modernization Path
Legacy greenBOX systems helped establish what on-demand dust collection could look like in the real world. They delivered years of energy savings, automated airflow control, and practical performance across a wide range of facilities.
Now the technology platform has moved forward.
For facilities still operating older greenBOX systems, this is the right time to evaluate whether the current control platform still makes sense for the future. In many cases, the answer is to modernize, because today’s operational, IT, and support requirements are different from the requirements of 1998, 2006, 2010, or 2016.
Ecogate can help identify your legacy system, review which components can be reused, and recommend the most cost-effective path to the current greenBOX platform.
Ready to Plan Your Upgrade?
If your facility is still running a legacy greenBOX control system, Ecogate can help you determine:
what system you have
what can be reused
what should be replaced
which upgrade path makes the most sense
Send Ecogate photos of your control unit, serial label, VFD, gates, and sensors, and our team can help identify your installed system and recommend a practical path forward.
Your existing Ecogate system was built to last. Now it may be time to bring the control platform forward.
Contact Ecogate — ecogate.com — +1 (818) 506-6016
FAQ
How do I know if my greenBOX is a legacy model?
A simple starting point is the model name. Legacy models often use all capital letters, such as greenBOX PRO, greenBOX NXT, or greenBOX MASTER. Current models use initial capitalization, such as greenBOX Pro, greenBOX Nxt, and greenBOX Master. If you are unsure, send Ecogate photos of the unit and serial label for identification.
Does Ecogate still repair legacy greenBOX systems?
Ecogate no longer provides official service, repair, or software updates for most legacy greenBOX control units because many components have reached end-of-life. Available technical documentation may still be provided for reference.
Can I reuse my existing gates and sensors?
In many cases, yes. Reuse depends on the specific legacy system and the condition of the components. Windows-based greenBOX MASTER and legacy greenBOX NXT systems often have strong reuse potential because they already used Smart actuators and Modbus communication.
What is the most cost-effective upgrade for a small system?
For many systems with 12 gates or fewer, the greenBOX 12 may be the most cost-effective path. It is still actively sold and works with Standard gate actuators.
What is the best upgrade path for larger systems?
Larger systems are usually better suited for the current greenBOX Pro, Nxt, Max, or Master platforms. The right model depends on the number of gates, number of dust collection systems, VFD configuration, and future expansion needs.
Do I need to replace the entire system?
Not always. Depending on your existing system, you may be able to reuse gates, sensors, VFDs, wiring, or other infrastructure. Ecogate can help review your configuration and determine what can stay and what should be replaced.
