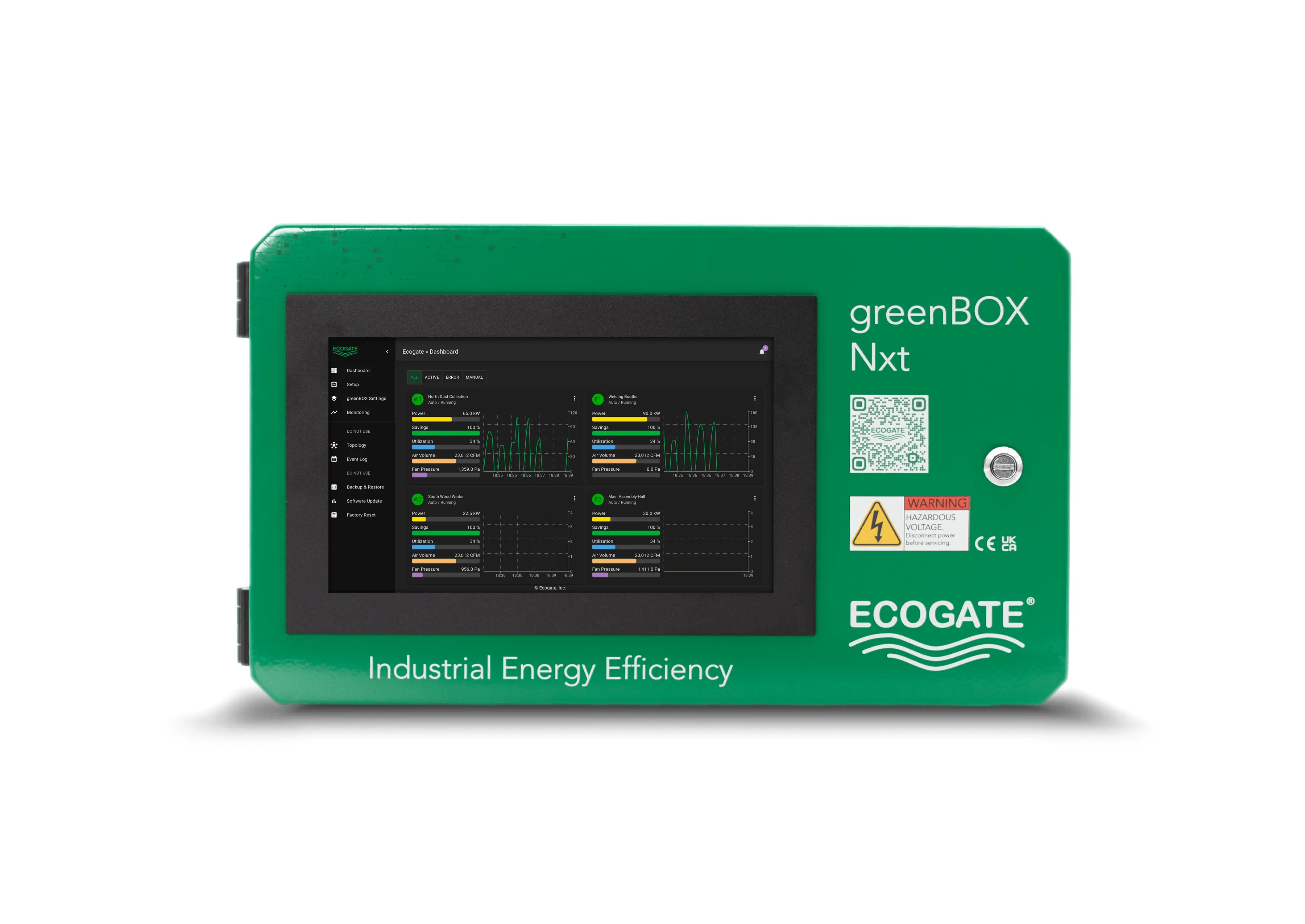

greenBOX Nxt
Ideal for factories with up to 75 workstations.
The greenBOX Nxt intelligently controls multiple dust, fume, or mist extraction systems as well as multiple fans via multiple Variable Frequency Drives. It can manage many ventilation systems with up to 75 gates. This control system allows users to easily expand and add more systems in the future. It is remotely accessible, over internet upgradable, and cost-effective. The system is designed to be fully automated, so users are expected to just use their workstations.
Product Description
The brain of the Ecogate system, the greenBOX, is a state-of-the-art control unit designed to optimize your dust/fume/mist collection system resulting in electricity savings between 50% to 75%.
This control unit can manage your entire dust collection system: it opens and closes workstation gates, starts and stops ventilation fan(s) and dust collectors, adjusts the fan(s) speed via Power Master VFD, and maintains minimum transport air velocities in the duct system.
By utilizing real-time air velocity, volume, and pressure measurements, it continuously monitors your machines' activities to determine the airflow requirements. Air velocities, volumes, and pressures are measured at gates, calculated at branches, and assessed at the system level.Tech Specs
Model: greenBOX Nxt, product EG.156 Certification: CE, CA UK (LVD - Low Voltage Directive, EMC - Electromagnetic Compatibility Directive); UL per request User Interface: built-in 10.1" touch screen; built-in web server, user interface is accessible via any connected device with browser; remote access via internet; by using modern internet technologies Web User Interface response is immediate and fluent, scalable to different screen resolution. Software Updates: Software is automatically updatable via internet connection (Ethernet port) Size: Approx. 16.8” width x 9.8” height x 4.4” deep (425 mm x 250 mm x 110 mm), green painted metal type 1 enclosure intended for a wall installation (wall mouting plate is included). Weight: Approx 20 Lb (9 kg) Power Supply: IEC-60230 C14 power socket for C13 IEC cable, 120 – 240 V AC, 50-60 Hz, 240 W, peak 350W; power supply CE, UK CA, UL508A, UL listed, EMI input filter. Modbus Ports: Three Modbus over RS485 for Ecogate Smart gates, and for Ecogate Power MASTER Variable Frequency Drives; and for other Modbus devices (air velocity sensors, pressure transmitters, temperature sensors etc.), the 24V DC is provided for Ecogate gates and other Modbus devices, each 24V DC power output is electronically protected, limit is set to 3.3A, and adjustable up to 4A in user interface. Front Panel Touchscreen: 10.1” IPS panel with LED backlight, resolution 1024 x 600, brightness 300 cd/m2, contrast ratio 700:1, 178 degree viewing angle, 60 Hz refresh rate, multipoint touch. Ecogate Compatibility: Ecogate Smart gates 2” to 26” ( + metric 120, 140, 160mm), Ecogate VOLT or current sensors, Ecogate Power Master variable frequency drives for 10 to 400 HP fan motors, Ecogate Master and Sensor cables. Inputs: Four optically isolated digital inputs (24V DC provided by greenBOX, current 10mA); function selectable from the listbox in user interface. Outputs: Four free (dry) contacts, three Normally Open (NO), one Normally Open and Normally Closed (NO and NC); function selectable from the listbox in user interface. Maximal 24V DC or AC, 1A. Output for status LED lights: Error (Red), Warning (Orange), OK (Green), maximal total current 0.37A, 24V DC (8.8W). Other Terminals: Ethernet up to 1Gbps, USB for external keyboard/mouse. Settings: Metric or Imperial units selection, time zone selection, gate timings (on delay, off delay), gate diameters, design drop air velocity, minimum airflow to maintain transport air velocity as a percentage of total air volume in many duct zones, negative pressure compensation (for the workstations at the end of ducting), dust collector on delay (0-99 sec) and dust collector shut-off delay (0 to 99 minutes), variable frequency drive minimal and maximum RPM, security functions (configurable in setup: all gates can be open or closed in stop mode), CLEANING function (to sweep duct in regular intervals, or at system stop); Fan and filter Pressure monitoring with separate Warning and Error levels both for Minimum and Maximum pressure; Savings evaluation based on baseline power value; Utilization of workstations evaluation (% of shift time); greenBOX power supply and temperature monitoring; VFD monitoring (communication, inputs, outputs). What You Need
For a complete system, you need a greenBOX control unit, Ecogate Smart Gates of proper diameter for all workstations, Volt or current sensors for all workstations, Power Master Variable Frequency Drive, Ecogate Master Cable to connect the gates to the greenBOX, and Ecogate Sensor Cable to connect sensors to the gates.
