Ecogate Is Now a One-Stop Powerhouse for On-Demand Industrial Ventilation

From engineering and system design to manufacturing, installation, and ongoing service — Ecogate now delivers a complete, end-to-end solution for on-demand dust, mist, and fume collection that cuts industrial electricity costs by 50–75%.

Most industrial facilities run their dust, mist, and fume collection systems at full power all day — regardless of how many machines are actually producing airborne particles. The result is massive, invisible waste. A 200 HP dust collector running continuously can cost over $73,000 per year in electricity alone. The majority of that cost is unnecessary.

For nearly three decades, Ecogate has been the world's leading manufacturer of on-demand control systems for industrial ventilation. Now, as the provider of the world's best-selling control system for on-demand dust collection, Ecogate has taken the next step: becoming a comprehensive, end-to-end partner for any facility that exhausts dust, mist, or fumes.

That means Ecogate now handles everything — engineering and project documentation, manufacturing of all hardware and software components, turn-key installation and commissioning, and long-term service agreements — all anchored by the intelligent greenBOX On-Demand Control System and Smart Gates. If your facility generates dust, mist, or fumes, Ecogate can design, build, install, and maintain the most energy-efficient ventilation solution available.

This article provides a complete overview of Ecogate's expanded capabilities — organized into three areas: Engineering Services, Complete Hardware & Software, and Installation, Commissioning & Service.

I. Engineering Services

Every Ecogate project begins with engineering. Before a single gate is installed, Ecogate's team conducts a rigorous analysis of your existing ventilation system — measuring actual airflow, identifying inefficiencies, and designing a right-sized on-demand solution. For new builds, Ecogate designs the full system from scratch, often enabling significantly smaller ductwork and equipment that still outperforms conventional oversized systems.

System Specifications & Sequence of Operations

Ecogate provides comprehensive architectural and engineering documentation at the outset of every project. Each package includes full technical specifications and a clear sequence of operations — the step-by-step logic that governs how the system starts up, adjusts to production changes, maintains minimum duct velocities, and shuts down safely. These documents are delivered in both Word and PDF formats, ready for permit submissions, contractor coordination, and owner records.

New System Design & Existing System Upgrades

Whether you're designing a new facility or improving an existing dust collection system, Ecogate's engineering team prepares a complete project package. This includes:

• Pressure loss calculations and design air volume analysis for every branch and drop

• Detailed duct system layouts optimized for on-demand operation

• Fan and dust collector selection and specifications

• Safety system planning — fire suppression integration, no-return valves, spark detection coordination

• All data and calculations required for utility incentive applications

The right-sizing advantage is substantial. Because an Ecogate system only moves air to workstations that are actively producing dust, the peak concurrent demand is a fraction of the theoretical maximum. Nova Labs, a Washington D.C.-area makerspace, reduced their planned main duct diameter from 24 inches to 14 inches — and cut their total project cost from approximately $1,000,000 to roughly $150,000. Read the Nova Labs case study →

The Ecogate On-Demand Control System operates across five interconnected layers, from individual workstation sensors to cloud analytics.

Energy Audits, Incentive Applications & On-Site Engineering

For facilities looking to reduce operating expenses on existing dust, mist, or fume collection systems, Ecogate provides specialized on-site energy audits. Using precision measurement instruments — including pitot tube-based air velocity meters, 3-phase power analyzers, and motor monitoring data loggers — Ecogate's engineers measure three critical values:

• Design Air Volume: What the system should be moving per engineering specifications

• Actual Air Volume: What the system is currently exhausting (often very different after years of modifications)

• Working Air Volume: What the system would move if it only served actively running machines — this gap is the savings opportunity

These measurements are not just diagnostic tools — they are the foundation of utility incentive applications. Ecogate's technical calculations are recognized by utility companies across the United States and Canada, and have supported incentive awards covering 50–70% of total project cost, including ductwork modifications. Metrie, the world's largest hemlock moulding producer, received utility incentives from Puget Sound Energy covering 70% of their full system cost. Read the Metrie case study →

💡 Incentive Opportunity

Utility rebate programs can transform an Ecogate system from a capital expenditure into a near-zero-cost upgrade. Ecogate's engineering documentation is accepted by utility programs across North America. Contact us to assist you with incentives →

II. Complete Hardware & Software for Demand-Based, Energy-Saving Ventilation

Ecogate manufactures every core component of the on-demand control system — from the intelligence layer (the greenBOX controller) to the muscle (Power Master VFDs) and the precision (Smart Gates and sensors). All components are engineered to work together as a unified, self-calibrating system. No third-party integrators. No custom programming. One system, one provider.

The greenBOX Nxt — Ecogate's flagship On-Demand Controller, capable of managing multiple dust collection systems from a single unit.

greenBOX On-Demand Control Systems

The greenBOX controller is the brain of every Ecogate system. These units receive real-time data from every Smart Gate and sensor in the system, calculate the precise fan speed needed to meet current demand, and send control signals to the Power Master VFD — all in continuous, closed-loop operation.

greenBOX controllers scale from small woodworking shops with a handful of gates to large-scale manufacturing facilities managing hundreds of drops across multiple dust collectors. A single greenBOX can manage several collection systems simultaneously, making it a highly cost-effective architecture for complex plants.

The defining capability of the greenBOX — and Ecogate's core patent — is its ability to monitor air volume and velocity at every individual gate in real time. No other system on the market does this. This closed-loop feedback is what allows Ecogate to guarantee that minimum transport velocities are maintained throughout the ductwork at all times, regardless of how many workstations are active. This is the technical foundation of NFPA 660 compliance.

Model	Best For	Specs
greenBOX Pro	Small shops, simple operation	Max # of gates: 36 Modbus ports: 3 Power supply: 1 Touchscreen: N/A
greenBOX Nxt	Mid-size facilities, multiple collectors	Max # of gates: 75 Modbus ports: 3 Power supply: 1 Touchscreen: 10.1"
greenBOX Max	Large factories, complex duct networks	Max # of gates: 150 Modbus ports: 6 Power supply: 2 Touchscreen: 15.6"
greenBOX Master	Industrial campuses, multi-building	Max # of gates: 225 Modbus ports: Power supply: 4 Touchscreen: 15.6"
greenBOX 12	Small shops, hobbyist installations	12-gate capacity, expands to 24 with 2nd greenBOX 12 in master/slave configuration

Power Master VFDs

The Ecogate Power Master VFD translates the greenBOX's calculations into precise fan speed adjustments. Developed in collaboration with ABB — one of the world's leading industrial automation companies — the Power Master is built on the ABB ACS880 platform with custom Ecogate hardware and software that eliminates the complex manual configuration typically associated with industrial VFD installations.

The Ecogate Power Master VFD — configured and operational in minutes via the proprietary Setup Assistant, compatible with 230V, 460V, and 575V AC systems.

Power Master VFDs are available for all common fan motor sizes and voltages (230V, 460V, and 575V AC). Two features distinguish them from generic VFDs:

⚡ Setup Assistant

A proprietary wizard establishes full Modbus RTU integration with the greenBOX in minutes — versus hours or days of manual configuration required by standard industrial VFDs.

🤖 Adaptive Programming

Custom software automates dust collector startup and shutdown sequences, saving additional electricity and labor while managing safety integrations (e.g., stopping the fan when a fire alarm triggers).

The physics behind the savings is well-established: Fan Affinity Laws dictate that power consumption scales with the cube of fan speed. A 20% reduction in air volume reduces electricity consumption by approximately 50%. A 30% reduction lowers it by roughly 66%. Ecogate uses a conservative 2.5 power factor (versus the theoretical 3.0) in all savings projections — a methodology accepted by utility companies across North America.

Fan Affinity Laws: even modest reductions in airflow yield outsized electricity savings. A 30% reduction in air volume cuts fan power by approximately 66%.

Smart Gates

Ecogate's automatic blast gates are the most technologically advanced gate products available for industrial ventilation. Unlike pneumatic gates (which require compressed air infrastructure and report no data) or consumer-grade motorized gates (which simply open and close on a timer), Ecogate Smart Gates actively measure airflow and feed that data back to the greenBOX — making real-time closed-loop control possible.

All Smart Gate motors connect to each other and to the greenBOX via a single daisy-chain cable that simultaneously provides 24V DC power and two-way Modbus communication. No compressed air. No complex point-to-point wiring. Installation is straightforward and scalable.

Rotation Blade Gates (4" to 26")

For dust collection systems handling high material volumes — sawdust, metal shavings, heavy particulate — rotating blade gates are the recommended choice. Available in sizes from 4" to 26" in zinc-plated or stainless steel, these gates handle the highest airborne loads without clogging or material buildup at the gate body.

Butterfly Style Gates (2" to 40")

For applications requiring a tighter seal in environments with lower or finer dust concentrations — pharmaceutical facilities, laboratories, food processing, fine woodworking — butterfly gates provide superior sealing performance. Available in stainless steel up to 40" and zinc-plated steel from 2" to 16", they integrate the same Smart Motor actuators as the rotation blade gates and are used for NFPA 660 compliancy.

Precision Airflow Gates — Adjustable from 0% to 100%

Both gate types can be paired with Ecogate's Precision Airflow Motor actuator, enabling incremental positioning in 1% steps from fully closed to fully open. This capability transforms standard blast gates into continuously variable flow control devices, allowing the greenBOX to regulate critical parameters — air volume, velocity, pressure, temperature — with fine precision. Precision gates can also be deployed as adjustable bleed gates at duct branch ends, automatically maintaining the minimum transport velocity required by NFPA 660 even when all nearby workstations are inactive.

Comprehensive Sensor Suite

Ecogate systems operate with full automation — plant operators focus on their machines, not on the ventilation system. This automation is made possible by two classes of sensors working in tandem.

Workstation Activity Sensors

Installed at every workstation, these sensors detect when a machine is producing dust, mist, or fumes and signal the greenBOX to open the corresponding gate. Ecogate's sensor range includes:

• Ecogate VOLT Sensor: Connected in parallel with cutting tools; detects motor activation via voltage signal

• Current Sensors: Monitors motor current draw to determine machine activity

• Programmable Laser Sensors: Detects operator or material presence at the workstation

• Proximity, Photoelectric, and Occupancy Sensors: For specialized environments including robotics, conveyor systems, and lab settings

• Manual Wall Switches: Allows operators to manually activate ventilation at stations where automatic detection isn't appropriate

Dust Collector Monitoring Suite

The Dust Collector Interface provides a comprehensive sensor package monitoring the dust collector itself: air volume and velocity, filter differential pressure, vacuum pump pressure for filter cleaning, fan static pressure per AMCA standards, atmospheric pressure, humidity, and ambient air temperature. The last three parameters enable an automated winter mode that adjusts system behavior based on environmental conditions.

For facilities requiring tighter fan static pressure accuracy, Ecogate offers the only AMCA-standard Pressure Tap available on the market — enabling precise fan curve measurement and system verification.

The Ecogate Dust Collector Interface monitors filter pressure, fan static pressure, humidity, temperature, and more — enabling automated winter mode and proactive maintenance alerting.

Dust Collector Controller (DCC) — Beyond Monitoring

Where the Dust Collector Interface monitors, the Dust Collector Controller actively manages the all subsystems inside the dust collector. The DCC uses Variable Frequency Drives — not standard contactors — to soft-start and soft-stop the dust collector motors, extending equipment lifespan while continuously reporting voltage, power, speed, and current for proactive issue detection and maximum uptime.

Ecogate Cabling — Engineered for Industrial Environments

Two cable types complete the system architecture:

• Ecogate Master Cable: The daisy-chain backbone for all Smart Gates. Carries 24V DC power and bidirectional Modbus communication in a single run — reducing installation labor and complexity.

• Ecogate Sensor Cable (600V insulation): Rated for installation inside high-voltage electrical cabinets, enabling safe sensor placement directly within workstation control panels.

III. Installation, Commissioning & Service Agreements

Turn-Key Installation & Commissioning

Every Ecogate quotation includes options for comprehensive turn-key installation and commissioning, covering both the mechanical integration of gates into the dust collection ductwork and all required electrical work. Ecogate can also train local contractors who have established relationships with your facility — and for facilities with capable maintenance teams, Ecogate supports self-installation with detailed guides, documentation, and remote technical support.

The final step of every installation is a thorough system calibration conducted by Ecogate technicians. This commissioning phase ensures every gate reports accurate airflow data, every sensor reliably detects machine activity, and the greenBOX is tuned to the specific characteristics of your duct system and fan equipment. The result is a system operating at peak efficiency from day one.

🏭 Case Study — Metrie, Ferndale WA Metrie, the world's largest producer of hemlock mouldings, installed an Ecogate On-Demand System on three dust collectors — two at 250 HP and one at 200 HP — that together consumed over 60% of the plant's total electricity. The system projects 1.6 million kWh in annual savings and a 25% peak demand reduction. Puget Sound Energy covered 70% of the total project cost through utility incentives. Read the full case study →

Service Agreements — ecoCARE

Industrial facilities change. Workstations are added, removed, and relocated. Production schedules shift. Ecogate's ecoCARE service program provides ongoing remote system monitoring and tiered maintenance agreements that keep your ventilation system calibrated to current facility conditions. Plans range from basic annual check-ups to platinum-level coverage with priority response and proactive optimization.

Data Collection & Analytics — The Ecogate Dashboard

The greenBOX controller hosts a built-in, robust web server that streams real-time system data — no additional software installation required. From any networked browser, facility managers can monitor:

• Air volume and velocity at each gate and system-wide

• Real-time electricity savings and fan power draw

• Filter differential pressure

• Individual workstation utilization

• Total fan static pressure

All data can be exported in CSV format for integration with ERP systems, sustainability reporting platforms, or ISO 50001 energy management programs. Ecogate Analytics provides cloud-based dashboards and multi-site visibility.

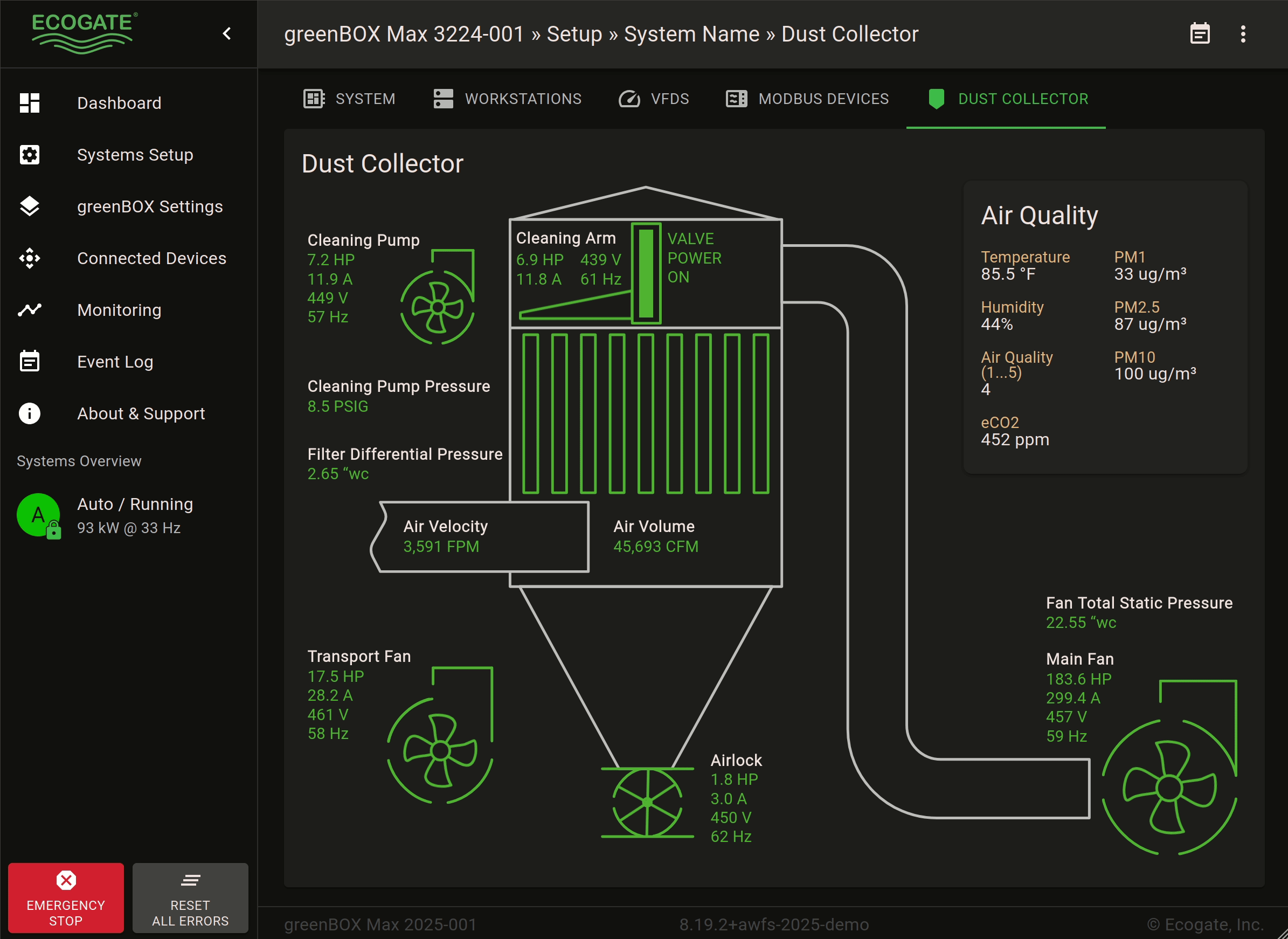

greenBOX User Interface - Dust Collector Controller

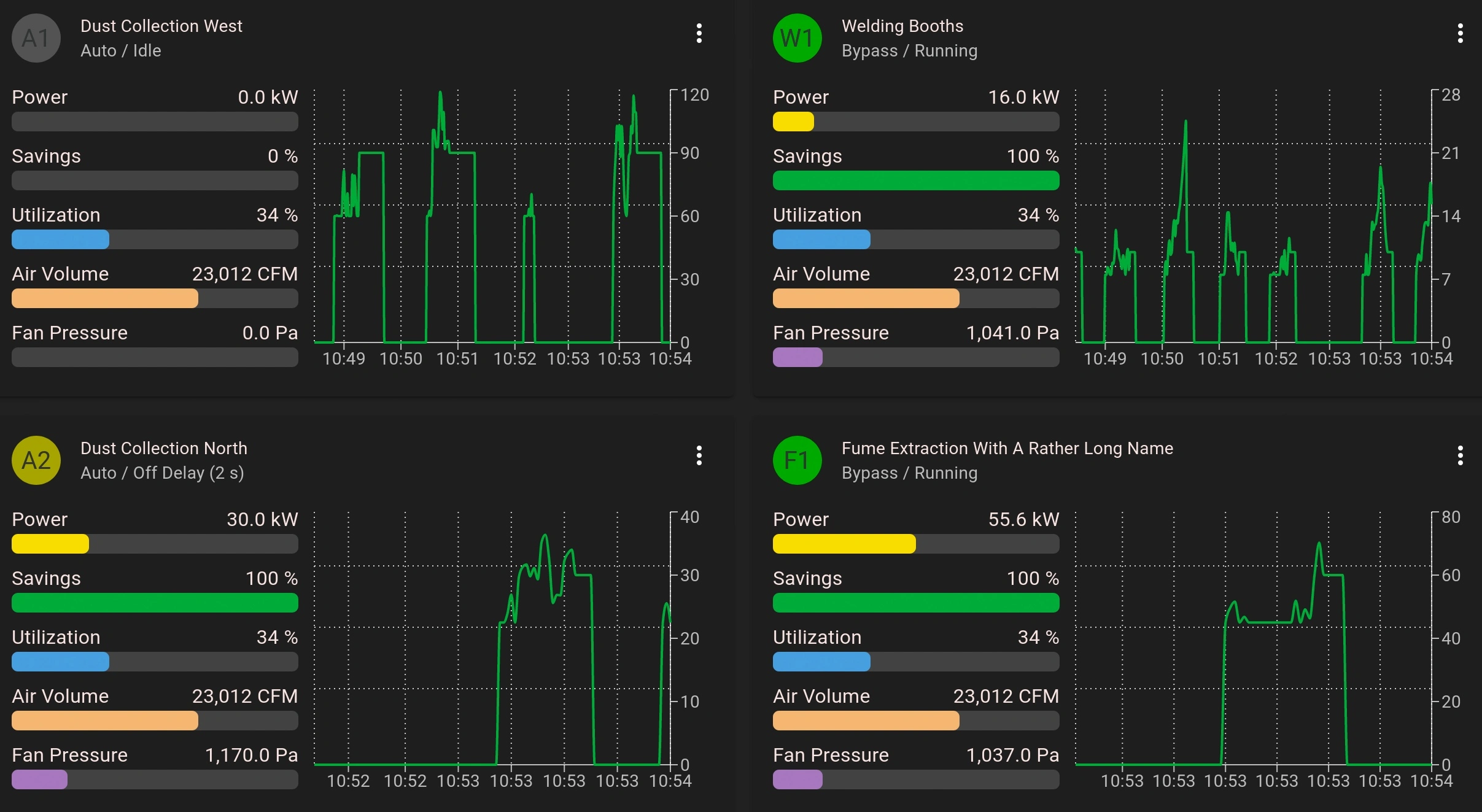

greenBOX User Interface - Systems Overview

greenBOX User Interface - Gate Settings

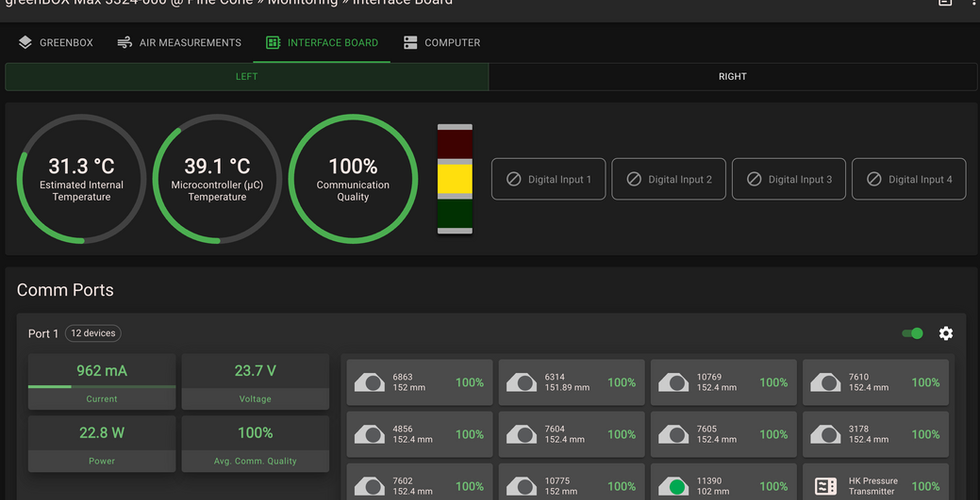

greenBOX User Interface - Interface Board

The Ecogate greenBOX integrated web server provides real-time visibility into airflow, energy savings, filter pressure, and workstation utilization — accessible from any networked device.

Why Ecogate — The 10 Things Only Ecogate Does

Ecogate's capabilities are the result of 25+ years of focused engineering. Several of these capabilities are genuinely exclusive:

• Patented real-time airflow measurement at every individual gate — the only system that feeds gate-level data back into the control algorithm

• Fully automated VFD setup wizard — Modbus integration with the greenBOX in minutes, not hours

• Dynamic NFPA 660 compliance — minimum transport velocities maintained automatically, not by design assumption

• Automatic over-the-air software updates with rollback protection — your system always runs the latest firmware

• Advanced Smart Gates with integrated sensors, limit switches, and Modbus daisy-chain — gates that report data, not just open and close

• AMCA-standard Pressure Tap — the only purpose-built product for code-compliant fan static pressure measurement

• Precision Airflow Gates — continuously variable 1% adjustment increments for laboratory-grade flow control

• Comprehensive self-install support — detailed guides, videos, and remote engineering for facilities that prefer to install themselves

• Made in USA with published online pricing and direct ordering at ecogate.com/store

Clients across industries — including Boeing, IKEA, GlaxoSmithKline, Tesla, Rolls-Royce, Williams F1, Andersen Windows, Rolex, and the Smithsonian — rely on Ecogate On-Demand Control Systems. Browse all success stories →

Get in touch

Frequently Asked Questions

What is an on-demand industrial ventilation system?

An on-demand industrial ventilation system automatically adjusts airflow in real time based on which workstations are actively producing dust, mist, or fumes. Instead of running the fan at full power continuously, the system opens gates only at active stations and uses a Variable Frequency Drive (VFD) to reduce fan speed — and therefore electricity consumption — to match actual demand. Ecogate's On-Demand Control System typically reduces dust collection electricity costs by 50–75%.

How does Ecogate maintain minimum duct transport velocity while reducing fan speed?

Ecogate's patented closed-loop control system measures actual air velocity at every gate in real time. When workstations are idle and their gates close, the greenBOX controller automatically opens additional bleed positions or adjusts gate positions at other points in the system to maintain the minimum transport velocity required by NFPA 660 (typically 3,500 FPM for woodworking). This is the key technical distinction between Ecogate and simpler VFD or timer-based approaches — Ecogate regulates airflow dynamically, not by static design assumption. Engineering analysis confirms that savings of 53% or more are achievable even while operating at minimum transport velocity.

What is the typical ROI for an Ecogate On-Demand Control System?

Most Ecogate customers see a return on investment in 1–3 years, with many achieving payback in under 2 years. Pharmaceutical and laboratory facilities often recover their investment in a matter of months due to the additional savings from reduced make-up air heating and cooling requirements. Utility incentives — available from many US and Canadian utility companies — can cover 50–70% of total project cost, accelerating payback dramatically. Ecogate's engineering calculations are accepted by these utility programs.

Can Ecogate retrofit an existing dust collection system, or is it only for new installations?

Ecogate is fully compatible with existing dust collection infrastructure. Ecogate's Smart Gates replace existing blast gates in-place, the greenBOX controller integrates with your existing dust collector, and the Power Master VFD is added to the fan motor circuit. Ecogate conducts an on-site energy audit to measure actual airflow and identify the savings opportunity before any equipment is ordered. Ecogate also offers a formal upgrade program for facilities with older Ecogate systems seeking to move to current-generation greenBOX technology.

What types of facilities does Ecogate serve?

Ecogate serves any industrial or commercial facility with dust, mist, or fume collection requirements. Core markets include woodworking and millwork, pharmaceutical manufacturing and research laboratories, metalworking and welding, aerospace and automotive manufacturing, food processing and packaging, carbon capture and cleantech R&D, military and government facilities, and makerspaces and vocational education programs. Ecogate has installations on 4 continents across thousands of facilities.

Does Ecogate provide installation, or do I use my own contractors?

Ecogate offers flexible installation options. Ecogate can provide full turn-key installation and commissioning through its own team — covering both mechanical (gate installation in ductwork) and electrical work. Alternatively, Ecogate can train local contractors who already have a relationship with your facility. Some facilities with capable maintenance teams choose to self-install, supported by Ecogate's comprehensive guides, instructional videos, and remote technical support. All installations conclude with a professional commissioning and calibration by an Ecogate technician.

What makes Ecogate different from simply adding a VFD to my dust collector?

A standalone VFD reduces fan speed but has no way of knowing which workstations are active or what the actual airflow conditions are throughout the duct system. Without gate-level control and real-time airflow feedback, a VFD alone risks either under-ventilating active workstations (safety hazard) or failing to reduce fan speed enough to achieve meaningful savings. Ecogate's system combines Smart Gates (which open and close based on machine activity), real-time airflow measurement at every gate (patented), and the greenBOX controller (which continuously calculates the optimal fan speed) to deliver genuine closed-loop optimization — not a static speed reduction. The result is 50–75% electricity savings with full safety compliance, versus the minimal savings and compliance risk of a VFD alone.
