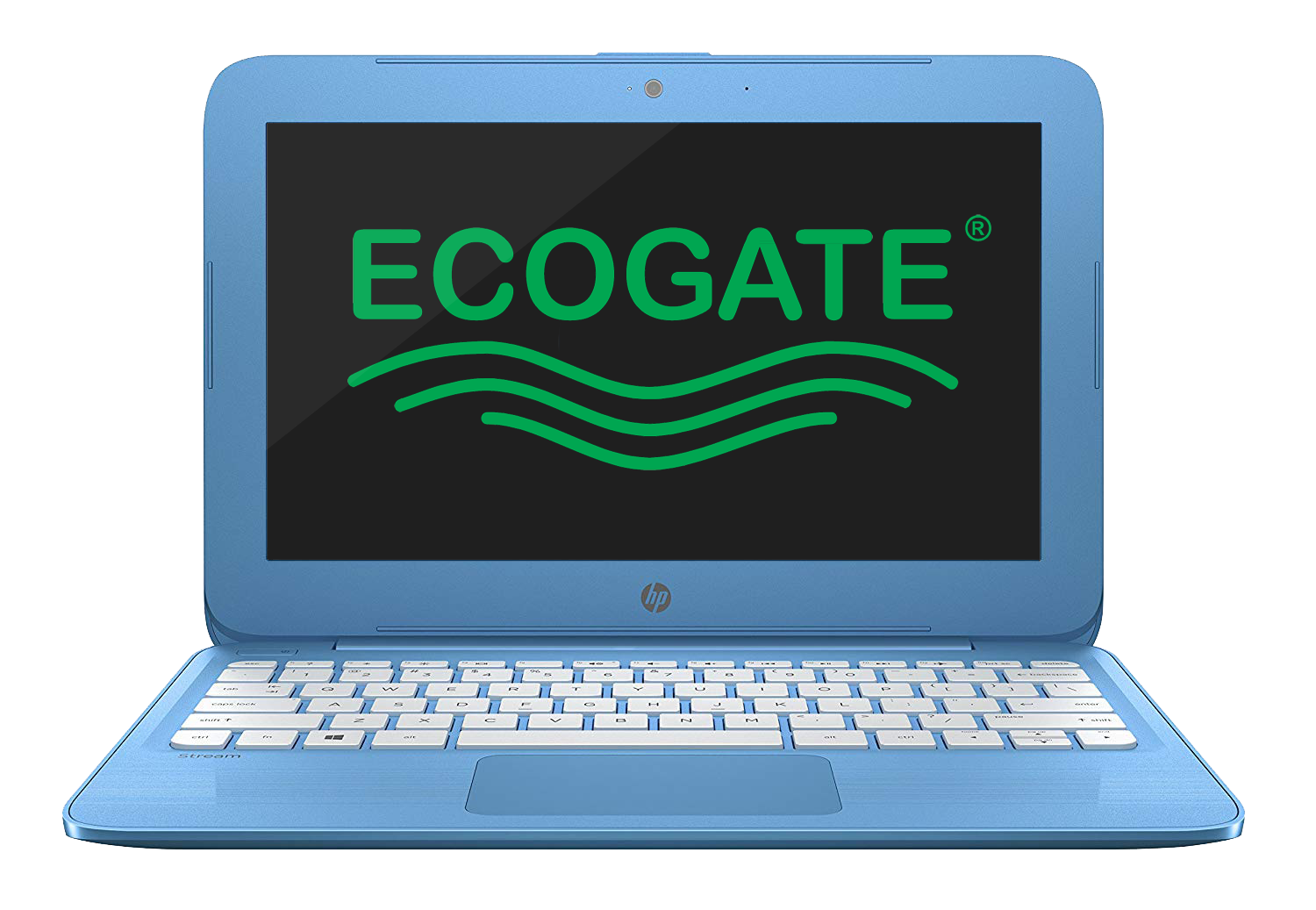

Netbook - for greenBOX 12
Our greenBOX 12 controller is a smart piece of equipment that will manage and improve your system. To make it even easier for you to install, setup, and manage your greenBOX 12, we offer this Netbook with ready-to-use Ecogate software.
Product Description
A Windows Notebook PC with Ecogate greenBOX® 12 Setup & Monitoring software should be used for the initial setup of the greenBOX® 12. It will not only make setup and monitoring much easier but will also provide us with remote access, which allows us to better support you remotely and in a timely manner.
A USB to serial cable adapter is used for the connection between the Windows PC and the greenBOX®. User specific setup is stored in a solid state memory of the greenBOX® 12 processor. All user configuration is managed through a user interface via the Windows notebook computer. The setup file can be copied to the Windows notebook PC for backup. After initial setup, the notebook PC can be disconnected from greenBOX® 12.
Also preinstalled is the LogMeIn PRO software that will allow an Ecogate technician to connect to your Notebook remotely to assist with the greenBOX setup or troubleshooting. The LogMeIn PRO software license is included (paid by Ecogate). The notebook can be connected to the internet via WiFi when remote support is required.
Key Benefits
- Provides easy system set-up with greenBOX 12.
- Remote troubleshooting for gates and sensors.
- Adjust the range of the fan speed to fine-tune system performance.
- Adjust minimum airflow% to increase system efficiency.
Tech Specs
Operating System: Windows 10 Home
Screen Resolution: 1024x768 or higher
Processor: Intel Celeron 2.6 GHz or faster
Graphic Processor: Intel integrated UHD graphics
Disk: 64GB eMMC
Memory: 4GB RAM DDR4
Screen Size: 11" or larger
Power Supply: External adapter 120 - 240 V AC included
WiFi Adapter: WiFi 5 (802.11ac)
Bluetooth: Included
USB Ports: Two or more USB 2.0 or USB 3.0 ports
Touchpad: Included
Keyboard: Included
Battery: Up to 10 hours operating time
User Guide
User guide for greenBOX 12 includes user guide for Ecogate "Setup and monitoring" software. A detailed help file is included with the software installation.
The greenBOX 12 firmware can be updated by using the Service tab "Setup and monitoring" software, the latest firmware is included with installation.
Full user and installation guide is available for download from here: ...
